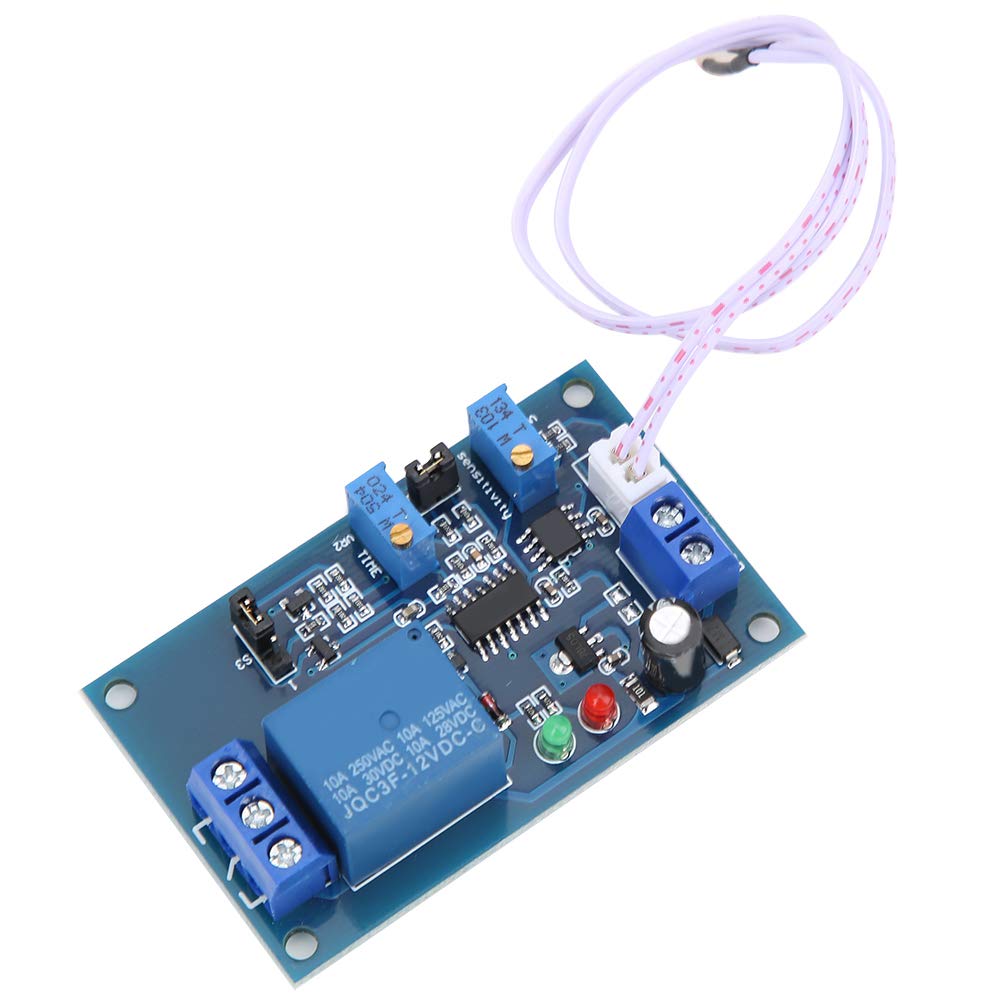

**XH-M131 12V Photosensitive Relay Module - Light Sensing Delay Switch with Adjustable Timing, Multi-Function & Stable Performance for Home Automation, Security Systems & DIY Projects**

Feature:1. It can be used for various light detection alarms, light control delay switches, brightness detection switches, and various street lights can be controlled. Automatically turn on at night, turn off automatically during the day and auto headlights, stage lights, LED lights, traffic light detection switch.2. The module has a delay, and the delay time can be adjusted to solve the flicker problem of the relay when the light is tipping point.3. The new light‑controlled delay module is equipped with a multi‑turn Accuracy adjustable potentiometer. The sensitivity and delay can be accurately adjusted to the appropriate range, and the application is stable.Specification:Condition: 100% brand newItem Type: Photoresistor relay sensorMaterial: PlasticModel: XH-M131Color: As pictures shownPerformance Parameters:Optional Power Supply: DC12V, DC5VQuiescent Current: 12mA, 15mA Maximum Power Consumption: 72mA, 45mA Relay Load Capacity: 250V 10A (AC), 30V 10A (DC)Ambient Temperature: <80 ℃Delay Range: Plug in for S2, delay 1-20 seconds adjustable, without for S2, 1-200 seconds adjustable.Package List:1 x Photoresistor Relay Sensor

【Description】The relay sensor adopts imported chip control, which has stable and reliable quality. And it can achieve automatic light detection, brightness detection, and the detection brightness valve point can be adjusted through the potentiometer

【Functions】The relay module has many functions of adjustable delay and light sensitivity, and the light sensor has no flicker. With relay and delay function, when the light is darker than the brightness adjusted by the potentiometer, the relay switch is automatically turned on

【Advantage】The power supply part has diode protection, filter capacitor and anti‑interference capacitor and 7805 voltage regulator chip, which can provide a stable voltage and prevent the module from burning out when the power supply is reversed

【Adjustable Potentiometer】The light detect sensor is equipped with a Accuracy adjustable potentiometer to better adjust the sensitivity and delay time; there are power instructions and relay pull‑in instructions

【Accessories】The photoresistor relay sensor module is equipped with a high‑power relay, which can control a 10A current load; also comes with a 50cm/19.7in long photoresistor sensor
