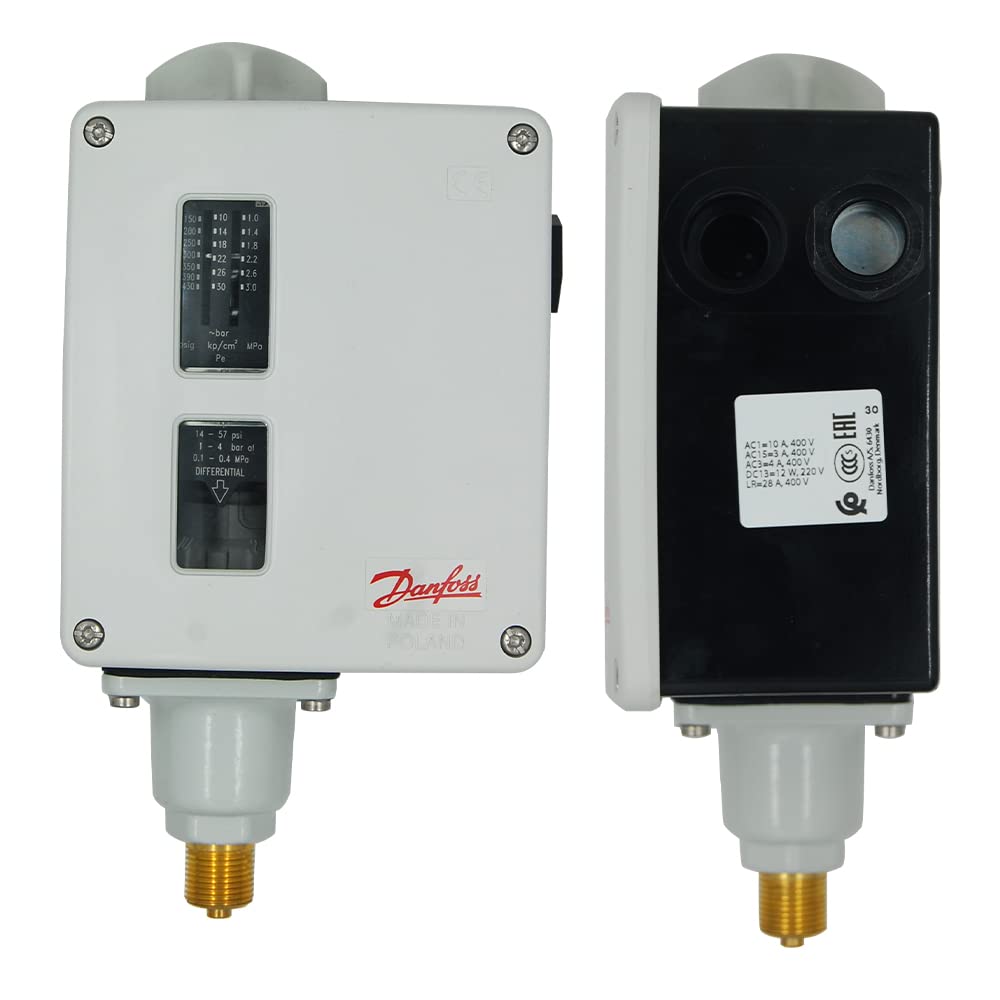

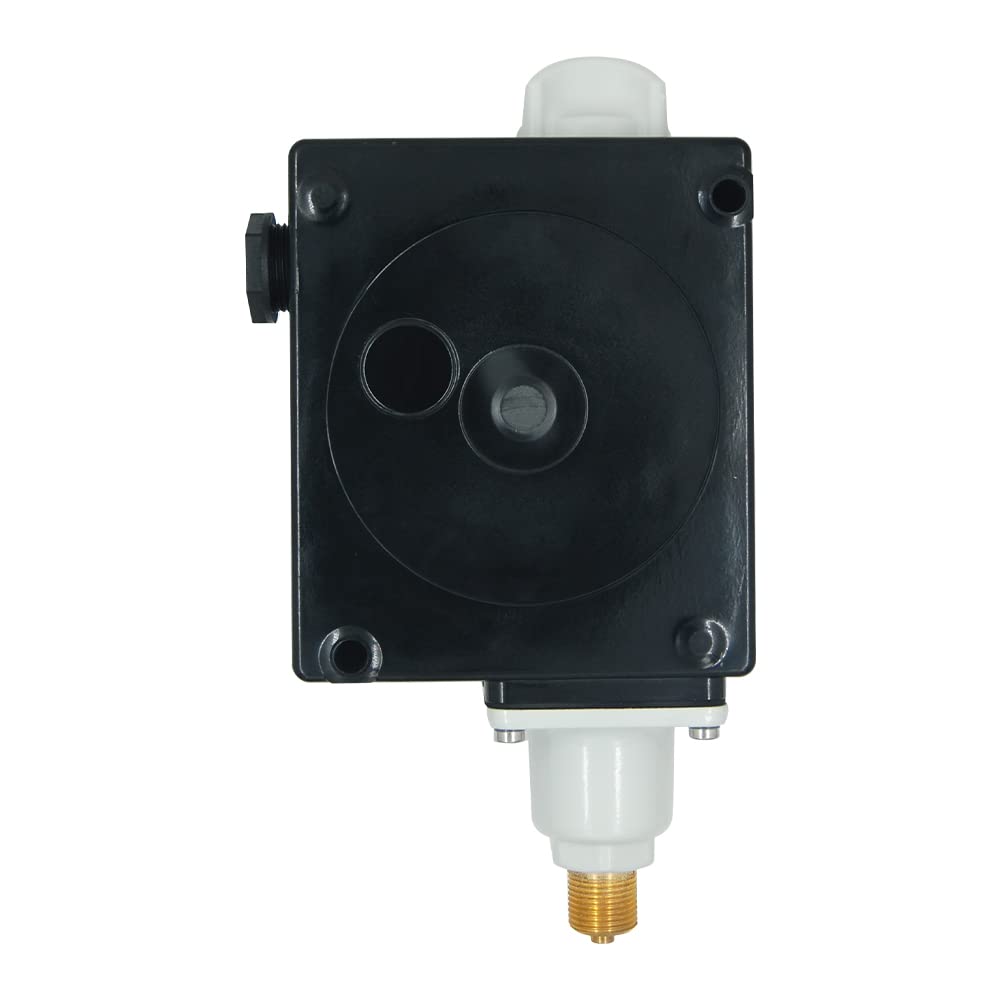

Danfoss RT117 Pressure Switch M/15, 10-30 BAR - Hydraulic System Pressure Control for Industrial & Agricultural Equipment

Danfoss Air Pressure Switch RT117 is a pressure-controlled, single-pole change over switch where the contact position depends on the pressure in the connection port and the set value. The RT series consists of pressure switches, differential pressure switches and pressure switches for neutral zone regulation, all for general use within the industrial and marine segments. Applications are as Air Conditioning System, Heavy Industry, Automobiles, Boilers, Steam turbine, Pumps, HVAC. Authorised distributor of Danfoss.

Wide regulating range | Wide range of units for industrial and marine applications | Suitable for alternating and direct current (AC and DC) | Interchangeable contact system | Special versions for PLC applications

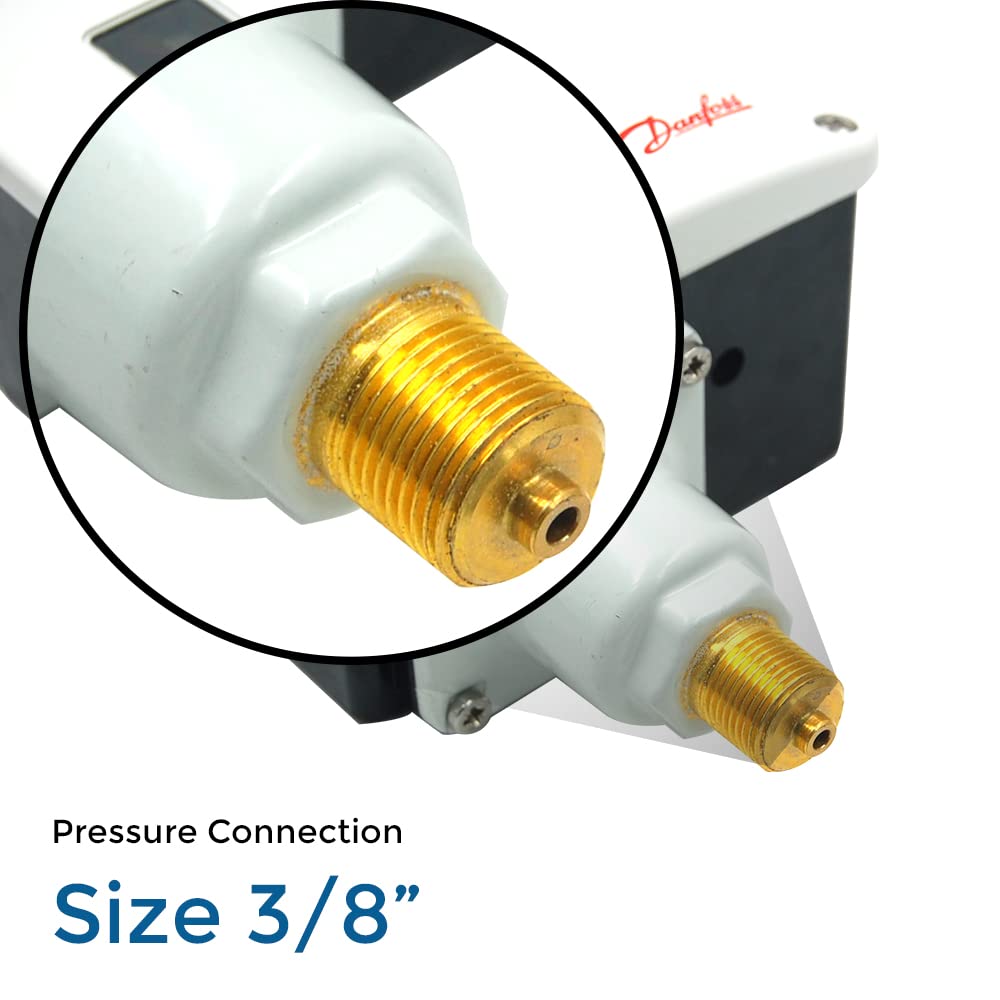

Differential Pressure range 1 to 4 bar | Regulation range 10 to 30 bar | Pressure Connection Size 3/8 | Pressure connection type G | Ambient Temperature range -50 °C to +70 °C/ 122° F to 158° F

Maximum Test Pressure 47 bar | Pressure Connection Standard ISO 228-1 | Electrical Connection size 2×Pg 13.5 | Maximum Working Pressure 42 bar

Enclosure rating IP IP66 | Weight 1.03 kg | Contact Function SPDT (Single-pole changeover switch) | Reset Function Auto | Electrical Connection Screwed Cable Entry

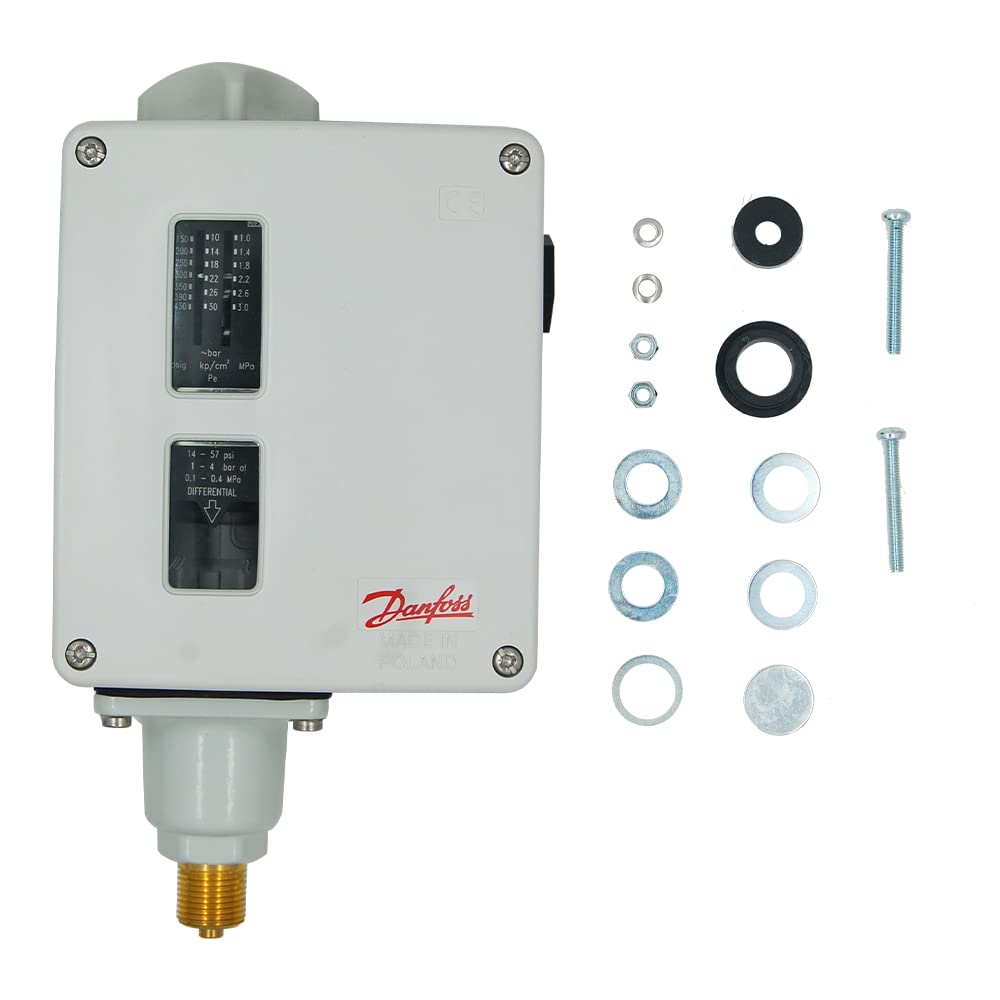

Supply Scope 1 unit of Danfoss RT117 and Instruction manual | Application Air Conditioning System, Heavy Industry, Automobiles, Boilers, Steam turbine, Pumps, HVAC, etc.
