Previous page Next page 1 Air Isolation 2 Feature 3 Deflector & Energy Saving 4 Motor & Fan Wheel Previous page Next page 1 Magnetic Switch 2 Installation 3 Product Include Can it Cool down my room? NO, Air Curtain is not an Air Conditioner, it does not generate cold air. It is a powerful FAN only to isolate the interior and exterior environment. Can the Magnetic Switch install on the sliding door? Yes, The included Magnetic Switch can be easily installed in any kind of doors/windows, it does not need to alternate the door frame. Outdoor Installation VS Indoor Installation. We recommend installing the air curtain indoors so that it can blow the interior conditioned air. If the air curtain is not reachable by rain, snow, and water, you can install it outdoors. Is air curtain noisy? The sound is from the strong air circulation. The motor is quiet and can run continuously for an 8-hour work shift. What are the dimensions and weight of the air curtain? Pay Attention to the dimensions and weight in the description. Please make sure you have enough space to install it and the weight is not light. Air Curtain Slimline Air Curtain Add to Cart Super Power Air Curtain Add to Cart Elegant Air Curtain Add to Cart Elite Air Curtain Add to Cart SS Air Curtain Add to Cart Strip Curtain Add to Cart Heated Curtain Buying Options Customer Reviews 3.8 out of 5 stars 97 4.4 out of 5 stars 356 4.1 out of 5 stars 138 4.6 out of 5 stars 2 — 4.5 out of 5 stars 300 5.0 out of 5 stars 2 Price $250.00$250.00 $250.00$250.00 $250.00$250.00 $250.00$250.00 $400.00$400.00 $136.00$136.00 — Series Slimline FM12-M Super Power FM15-M Elegant FM35-M Elite FM32 Super Power FM15-SS N/A RM08XX Available Size 36", 40", 48" 24", 36", 42", 48", 60", 72" 36", 42", 48", 60", 72" 36",40",48" 24", 36" 38", 42" 24" Air Flow Medium - Strong 8.5/10 Strong 10/10 Medium 7/10 Medium 7/10 Strong 10/10 N/A Low 5/10 Power Low Medium Medium Medium Medium N/A High Noise Level Medium Medium - High Low - Medium Low - Medium Medium - High N/A Low Dimension LxDxH 35.5" x 7.5" x 8.9" 35.5" x 8.6" x 10.4" 35.5" x 8.5" x 9.3" 35.5" x 8" x 8.5" 35.5" x 8.6" x 10.4" 38" x 84" 23.6" x 4.5" x 6.4" Weight 22 LB (36") 33.1 LB (26") 28.7 LB (36") 28 LB (36") - 11 LB 20 LB (24") Door to Ceiling Clearance 8.9" (Front air inlet) 10.4" (Front air inlet) 9.3" (top air inlet) 10.5" (top air inlet) 10.4" (Front air inlet) N/A 7" (Front air inlet) Voltage 120V 120V 120V 120V 120V N/A 240V

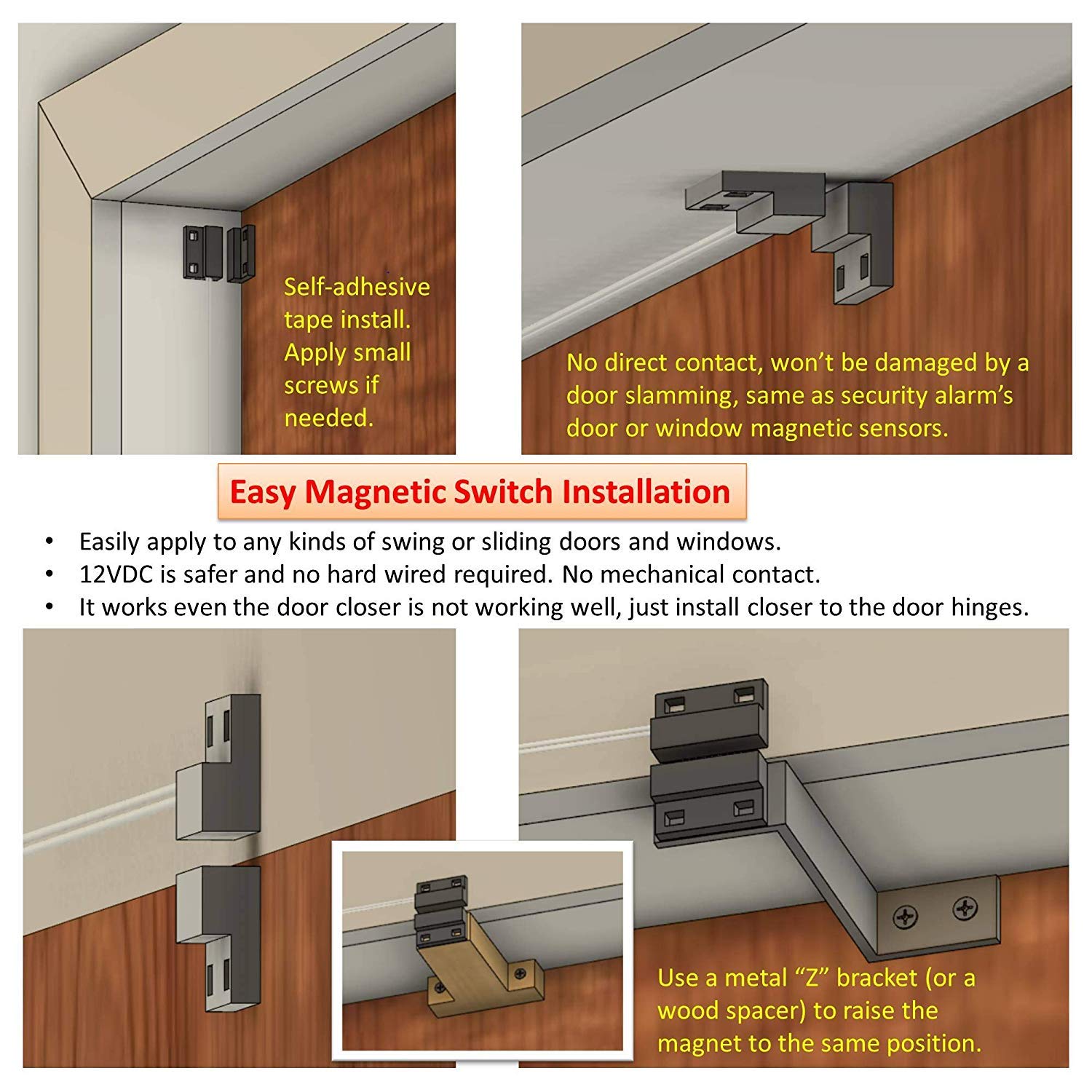

Magnetic switch THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. This air curtain has an electrical-magnetic circuit control with a magnetic switch. The magnetic door switch installation is much easier than the traditional mechanical micro switch. No hard wired needed on the 12VDC low voltage magnetic switch. Remote Control Included.

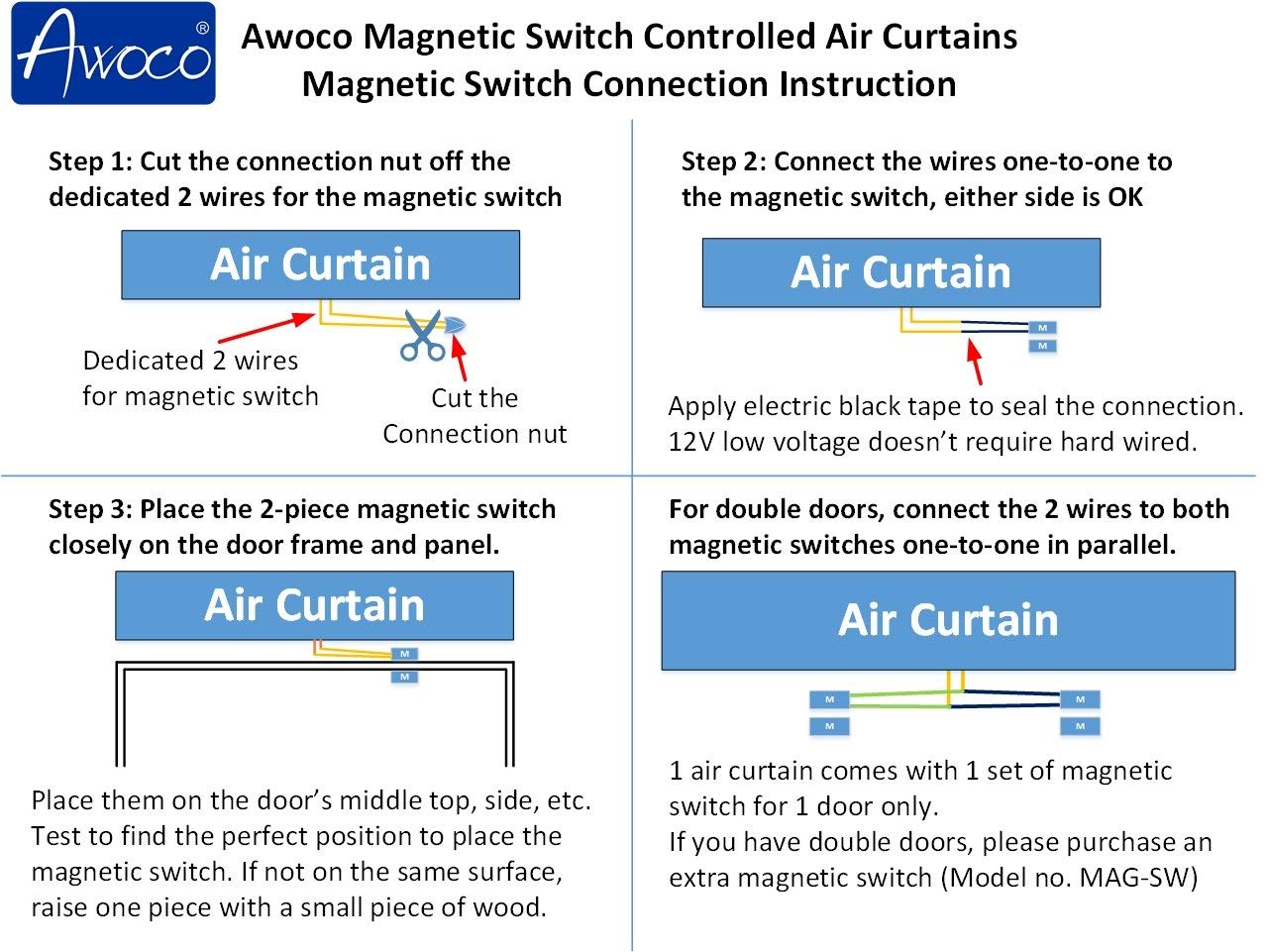

Easy installation 1) Mount the detachable mounting plate, then hang the air curtain up. 2) dedicated 2-wire for the magnetic switch connection. (Other brands might not have this.) 3) Detailed installation manual is included.

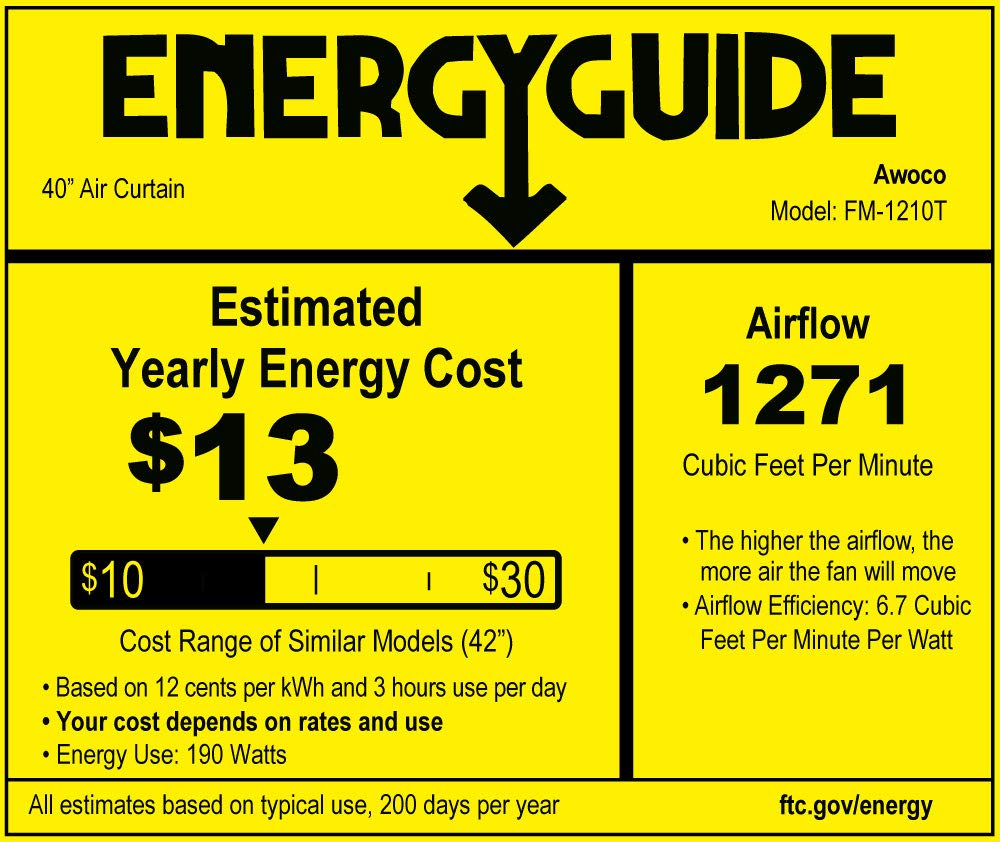

2 speeds of operation super powerful high speed at 1271 CFM, low speed at 1033 CFM. A HI/LO/OFF switch and Remote Control to select High/Low speed. 110V-120V 60Hz. 190W Max, 140W Min, less power consumption than other industrial air curtains.

Motor adopting the technology of German electrical machinery, it runs smoothly with reduced low noise. Optimized electrical machinery, reliable and safe runs for 5,000 consecutive hours. Fan wheels are made of high-tech ABS, powerful wind-force.

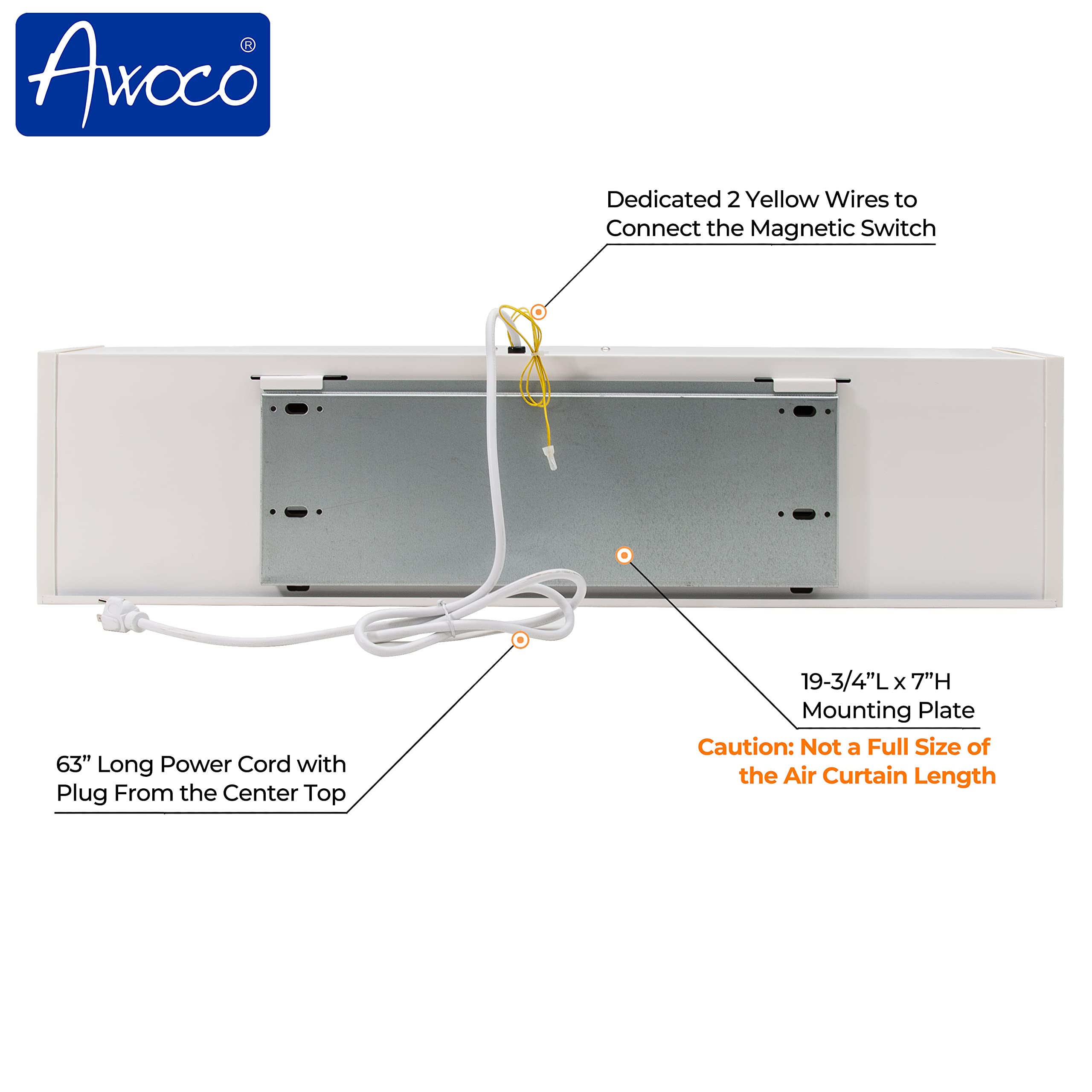

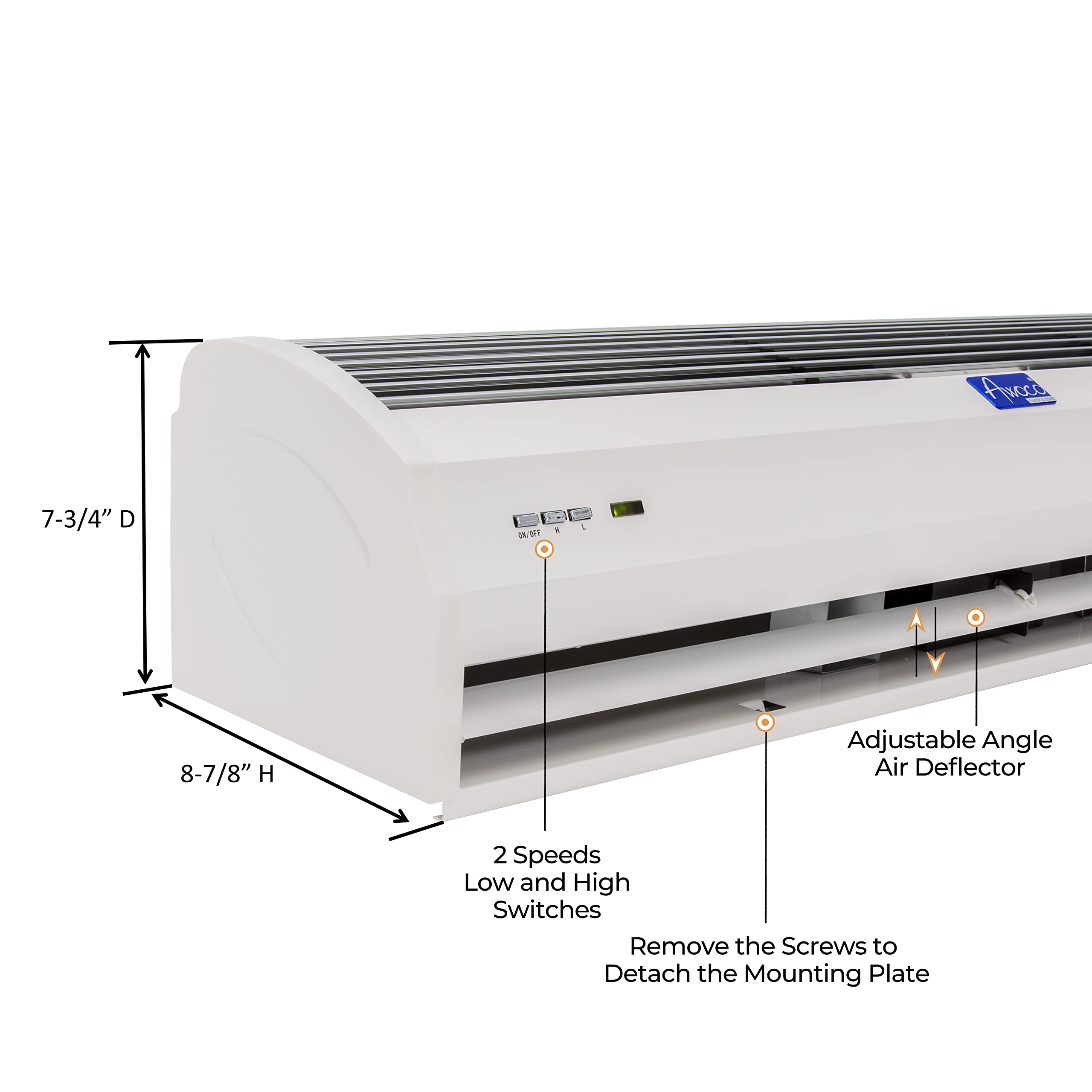

Overall size 39-3/8” L x 7-3/4” D x 8-7/8” H. Weight 24.3 LBS. Mounting plate size 19-3/4” L x 7” H. 62” power cord with plug is included. 1 year manufacturer protection. Fireproof and anti-erosive powder coated metal case, easy to clean slim body. CE Certified.

****** - Verified Buyer

4.5

When we grill or use the smoker, the flies cometh to the patio in force in the summertime. When we have guests over to swim, the back door is constantly opened and closed giving the little bastardos an opportunity to get in my house. My non-adult kids are the only sycophants not paying rent allowed to loiter around here. Therefore, I was looking for a way to thwart the unwelcome guests. My choices seemed to be a penny in a bag of water hanging over the door, stinky bag to lure them elsewhere, or an air curtain. My wife was not OK with the bag o' water as apparently it has an "undistinguished" appearance about it. So we went with the more modern technology of blowing a bunch of air at them to keep them away.Install was not too bad but I did have to first install a piece of wood (used a pressure treated deck board) over my brick (one pic attempts to show this) due to having some bricks that were slanted when laid for aesthetic purposes. The deck board gave me a level, yet still solid base to attach the curtain mounting bracket. Note: the bracket has to be perfectly centered over the door as the pre-drilled holes for the mounting/holding screws don't give you any wiggle room to tweaking the curtain to the left or the right. Although, if you didn't or couldn't make this perfect, you could drill your own holes in the bracket where you needed. Additional side note: I went into the brick with lead anchors that I put some gorilla glue on first and then TapCon type masonry screws (after glue set) with a hex bolt type head so I didn't have to worry about possibly stripping a phillips head. Unit lifts on to the top of the mounting bracket and then the screws at the bottom hold it in place.Attaching the magnetic switch wires was pretty simple. You can tape them, use wire nuts, or the crush type wire connector thingy that I'm not sure what the name is which is what I used. I had to elevate the door sensor to get a close enough connection but a quick cut of some left over luxury vinyl flooring was perfect for such. Then screwed it to the door and used the included adhesive for the door jam sensor. Works like a charm. The only thing thus far that I wish is that when you open the door, the curtain would get to full power faster than it does. It takes about 1-2 seconds for the air velocity to reach full power. Those could be precious seconds for satan's spawns to get in my house. The remedy: Tell the kids over and over and over again to please crack the door just slightly until the fan gets to high and then go outside or inside. Does that work? Of course not; they're my kids and I'm the dumbest person on the planet! Why would they listen to me? But that's what I do and while I don't know if it has a benefit, it makes me feel better...Hopefully the air curtain holds up. It's installed outside but well out of the elements due to our patio cover. No rain can get to it unless it's the apocalypse of rain storms. So far, it seems to do the job. For the money, if it indeed keeps flies out during high traffic in/out of the house, it's worth every penny to a guy that can't stand them getting into the house. I'll try and post an update after a few BBQ's with friends over (when the curtain is needed most...) to report more on the overall effectiveness.

Awoco 40" Slim Indoor Air Curtain - 1250 CFM, 120V Unheated with Remote Control & Magnetic Switch - CE Certified, Powerful & Quiet for Restaurants, Stores & Entrances - Compact & Lightweight Design
