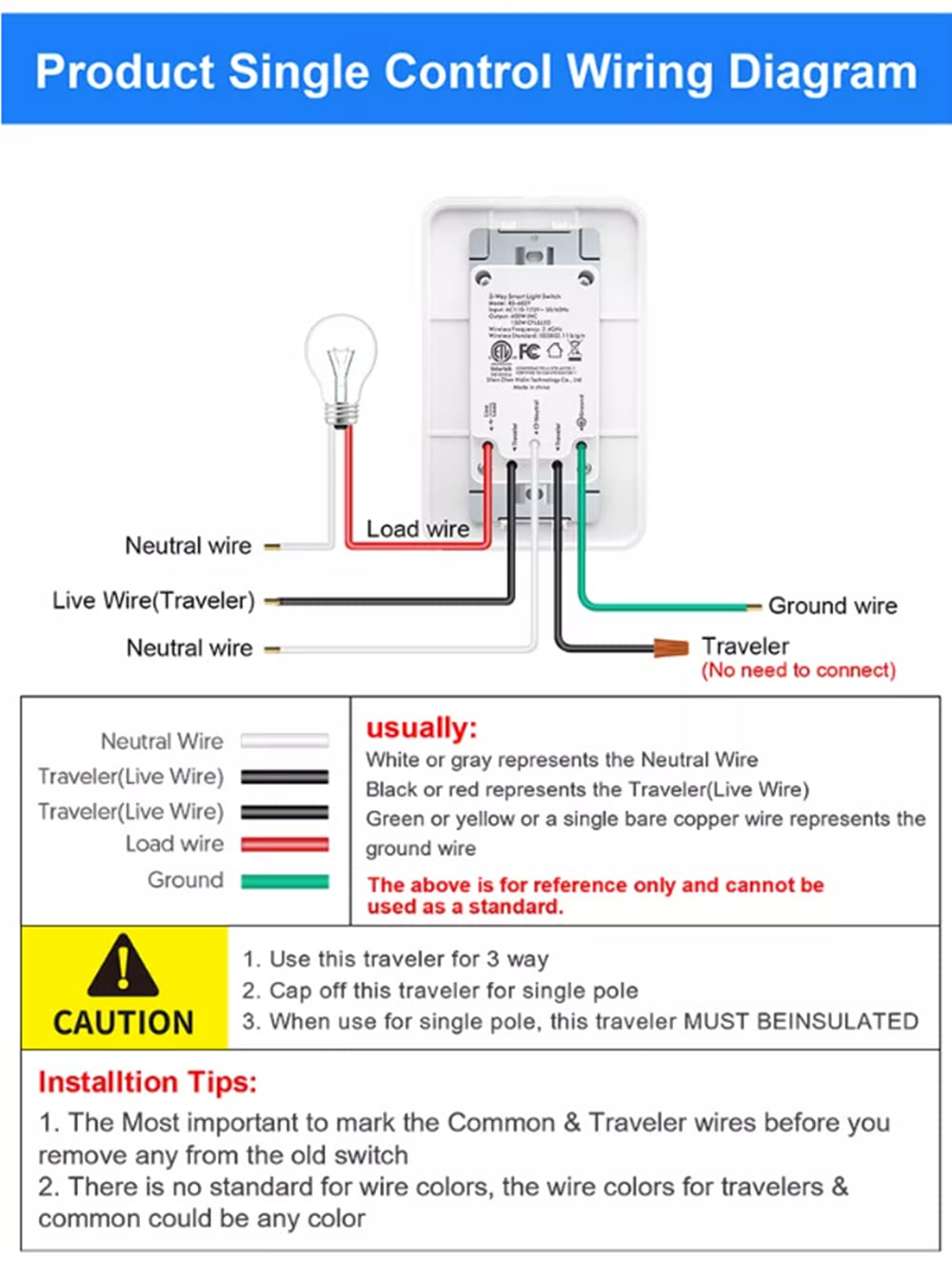

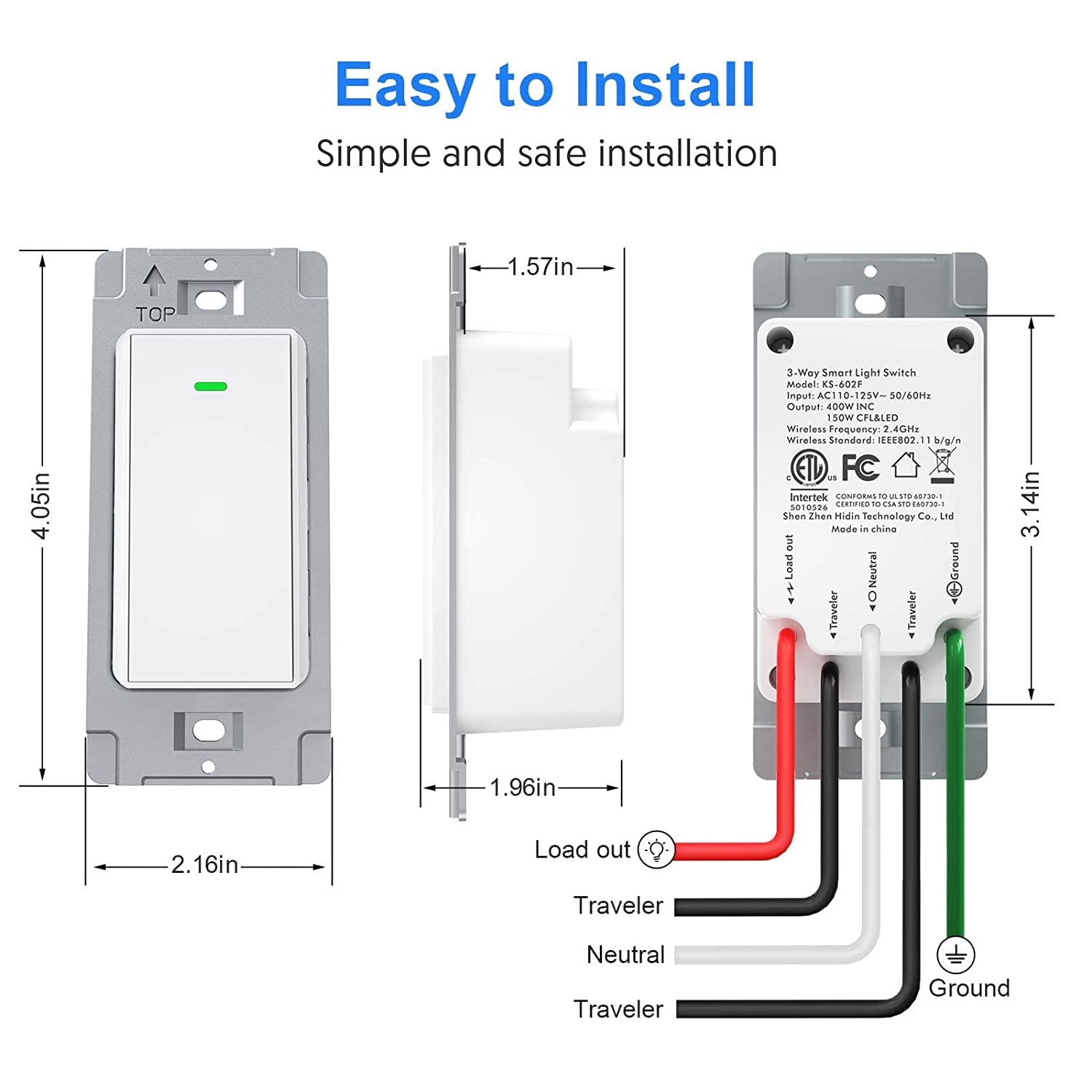

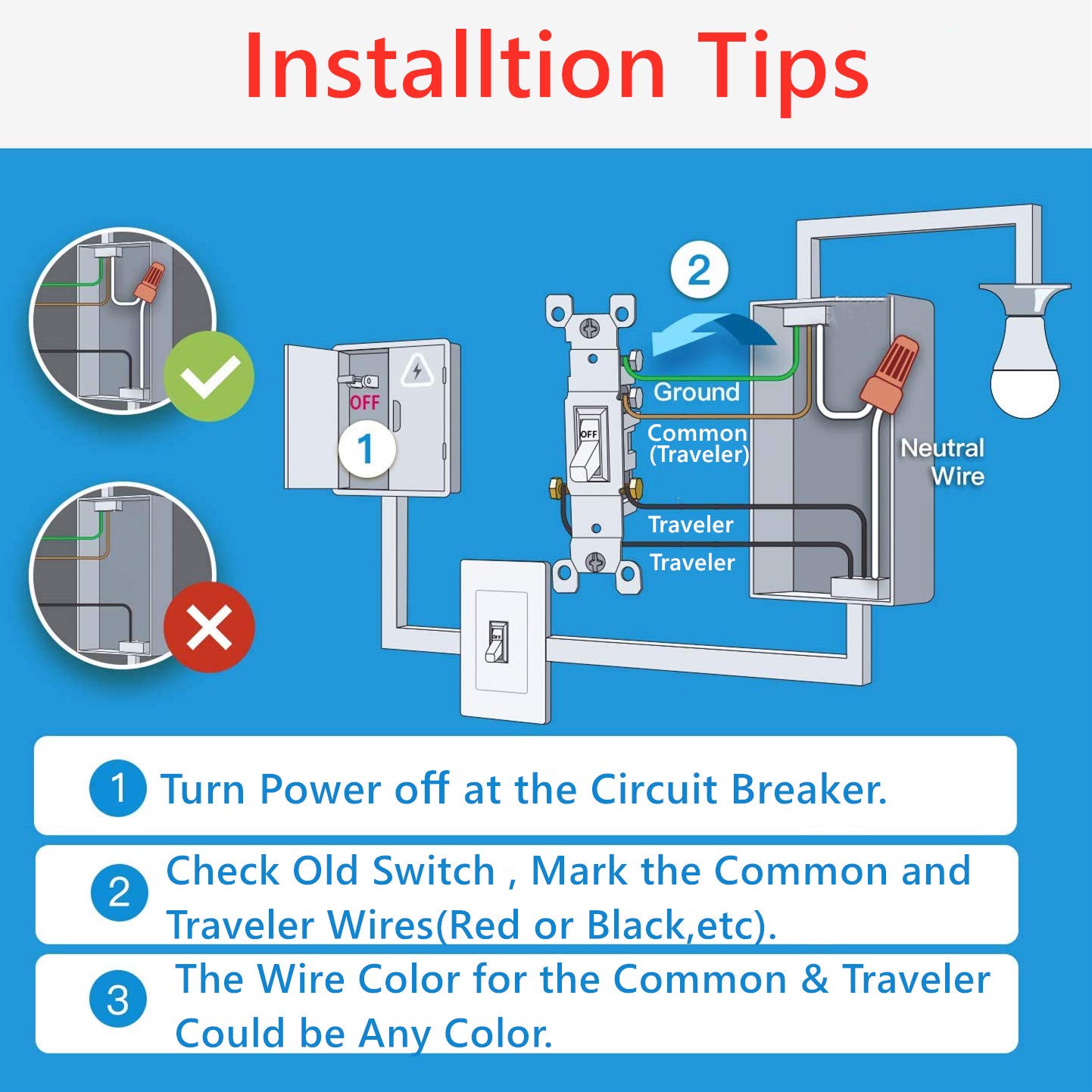

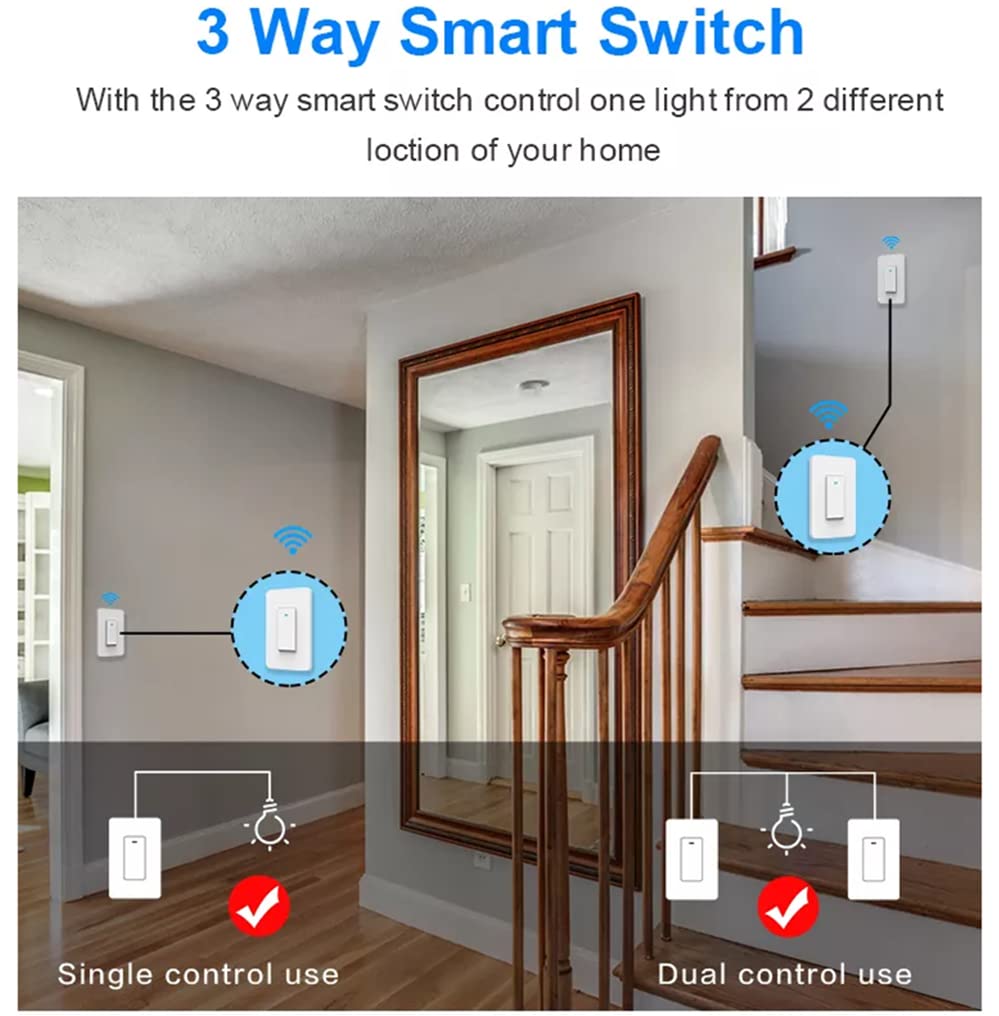

Smart 3-Way Light Switch Smart Design: replace any existing one or two 3-way wall switch ,They will be smart to control same lights on/off, Sync with your command through Alexa and Google Assistant. The switch also can replace a single pole switch, also can control 4-Way Circuit (replace one 3 -way switch in 4 way Circuit).Time settings: schedule the smart Wi-Fi light switch to automatically power electronics on and off based on specific time you set.Easy to install : Take less than 15 minutes to install with our step-by-step guide. No need to understand complex switch wiring. Features(Make your smart home) Works with Alexa , Google Home & SiriRemote control from anywhere, anytime Timer & scheduleNo hub required Family share & Group control Easy installation Specification: Switch Type: 3 Way or Single-Pole Light Switch Color/Finish: White/Heavy Duty Power supply: Neutral wire requiredShell Material: 94V0 fire retardant PC Rated Current: 15A(Max) *Rated Voltage: AC110V~125V/50-60Hz Rated Power: INC 500W / LED 150WWireless Standard: IEEE802.11b/g/n Working Frequency: 2.412~2.484MHz Static Power Loss: ≤0.5W Working Temp: -20゜C～75゜C REMOTE CONTROL Free Smart life app .Control devices connected to the Smart Switch wherever you have Internet using the free app on your smartphone. TIME SCHEDULING Automate your home lights based on daily routine. You can use the scheduling feature on this to automatically turn the lights on/off following prepared schedule, sunrise or sunset. VOICE CONTROL Works with Amazon Alexa , Google Assistant & Siri for voice control. Simply use your voice commands to control your light.Just say "Hey Siri, turn off the living room light." Easy to Install (3 Way) STEP 1 - Turn Off The Power Turn off the power for these switches location at the circuit breaker box.Remove wall plates and mounting screws for the two switches which are replacing. Pull switches out from their boxes so wiring can be viewed.Test the wires with a voltage tester to ensure power is off. If multiple switches are in the same box, test them. STEP 2 - Identify And Label Wires Before disconnecting the wires, take a picture ,label each wire.Wiring colors may vary, These wires are in the same sheathed cable and should be different colors that can vary between black, white, or red .The red and black wires connected to brass terminals are traveler wires; The wires connected to the common terminal are the live and load.Neutral is white wire ,should be present in the box . If neutral wires are only in one switch location, the traveler wire will be used to carry the neutral to the other switch OR Install only one Switch Where Neutral Wires Exist in the Box.Neutral , and ground wires are required, ground is bare copper. STEP 3 - Install The Switches If you have successfully identified and labeled each wire, you can disconnect the wires and remove the original switches.Install the Nexete light switch. Check all wires are secure. Common ,traveler ,neutral and ground wires must be connected as shown. Screw in Nexete Light Switch and attach faceplate, Turn power back on.Restore power, Test that your 3-way switches operate correctly.Configure the switch on your smart phone. Easy to Install (Single pole) STEP 1 - Turn Off The Power Turn off the power for these switches location at the circuit breaker box.Remove wall plates and mounting screws for the two switches which are replacing.Pull switches out from their boxes so wiring can be viewed.Test the wires with a voltage tester to ensure power is off. If multiple switches are in the same box, test them. STEP 2 - Identify And Label Wires Before disconnecting the wires, take a picture ,label each wire.Wiring colors may vary, These wires are in the same sheathed cable and should be different colors that can vary between black, white, or red .The red or black wire connected to brass terminals are load wires; The wires connected to the Live terminals are the live wire.Neutral is white, and ground is bare copper, the neutral and ground wires are required.Neutral wires should be present in the box . If neutral wires is not in the box, the traveler wire will be used to carry the neutral from another box to the switch STEP 3 - Install The Switches If you have successfully identified and labeled each wire, you can disconnect the wires and remove the original switches.Install the Nexete light switch. Check all wires are secure. Common ,traveler ,neutral and ground wires must be connected as shown. If use for single pole switch , the excess traveler wire must be CAPPED OFF.Screw in Nexete Light Switch and attach faceplate, Turn power back on.Restore power, Test that your 3-way switches operate correctly.Configure the switch on your smart phone. Smart Light Switch Double Light Switch Triple Light Switch Smart Dimmer Switch Smart 3-Way Switch Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 1,373 4.2 out of 5 stars 1,373 4.2 out of 5 stars 1,373 4.2 out of 5 stars 1,373 4.2 out of 5 stars 1,373 Price $18.97$18.97 $20.97$20.97 $23.97$23.97 $24.97$24.97 $19.97$19.97 Voice Control ✓ ✓ ✓ ✓ ✓ Remote Control Smart Life App Smart Life App Smart Life App Smart Life App Smart Life App Work with Alexa/Google Home/Siri ✓ ✓ ✓ ✓ ✓ Single Pole ✓ ✓ ✓ ✓ ✓ 3 Way no data no data no data ✓ ✓ Dimmable no data no data no data ✓ no data Voltage 110-125V 100-240V 100-240V 110-125V 110-125V Maximum Current 15A 15A 15A Wattage 1650W 2X600W 3X600W 500W INC/150W CFL&LED 500W INC/150W CFL&LED Wi-Fi Frequency 2.4GHz 2.4GHz 2.4GHz 2.4GHz 2.4GHz
