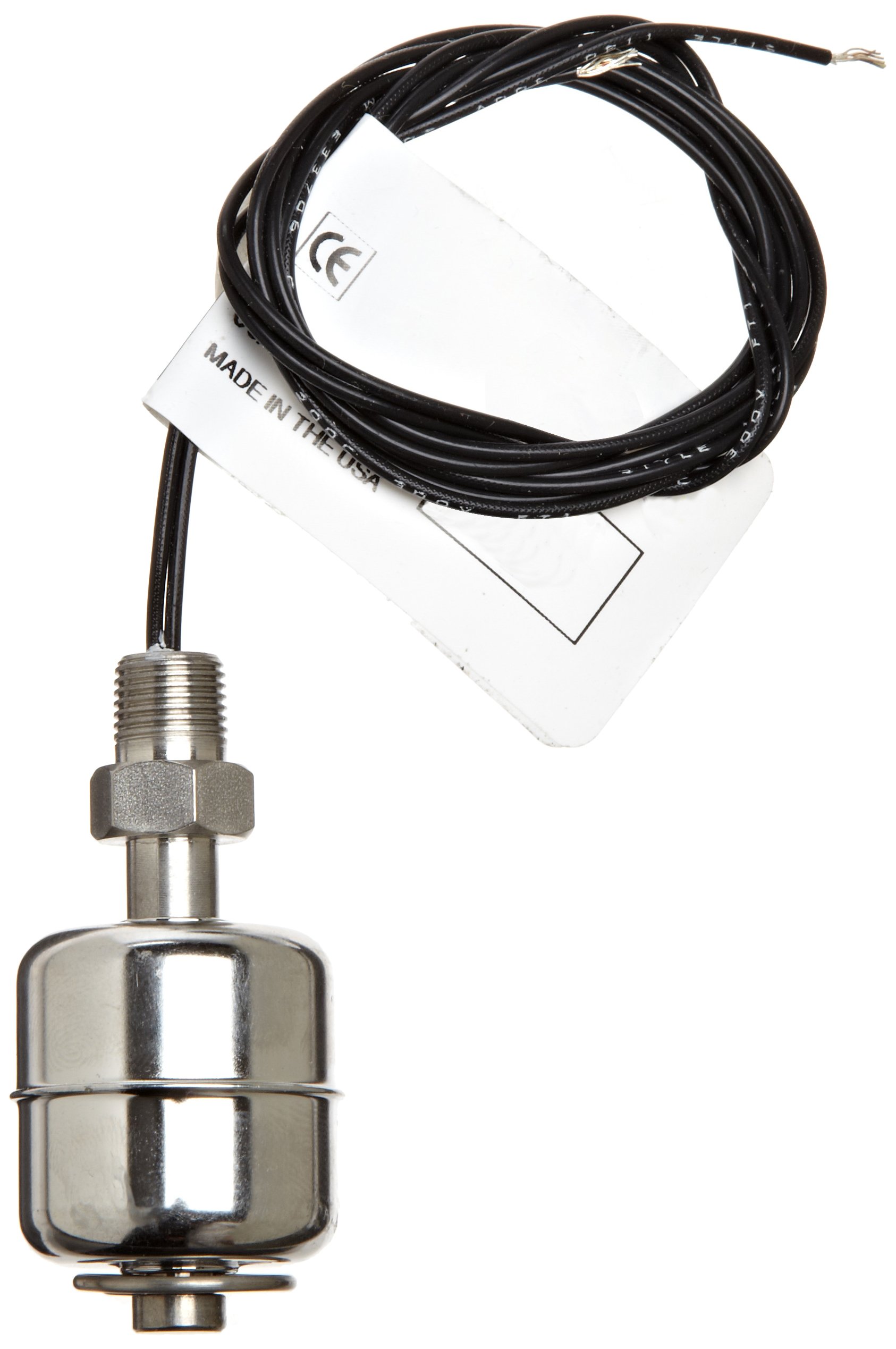

Flowline LV35-S201 High-Temperature Vertical Float Level Switch - 300 psi Pressure Rating - Ideal for Industrial Tank Monitoring & Liquid Level Control
$69.51 $126.39-45%
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
79533434
Guranteed safe checkout
DESCRIPTION
The general purpose high-temp float level switches provide reliable liquid level detection of relatively clean water, diluted chemicals and light weight oils with a 30VA reed switch output. Media examples include hot deionized water and cooking oil. The stainless steel liquid level sensors are mounted vertically inside the tank or horizontally through the tank wall as a high level alarm or low level alarm. Orientation: +/-20 degree vertical. Accuracy: +/-3mm in water. Repeatability: +/-1mm in water. Specific gravity: 0.7 minimum. Contact type: (1) SPST reed. Contact rating: 30 VA. Contact output: selectable NO/NC. Process temprature: -40 to 392 degreeF. Pressure: 300 psi. Sensor rating: NEMA 6 (IP68). Sensor material: 316 stainless steel. Wire jacket material: polymeric. Wire type: 2-conductor. Wire length: 2'. Process mount: 1/8" NPT. Classification: general purpose. Compliance: CE, RoHS.
FEATURES
316 Stainless steel level sensor for high temperature and pressure applications
Dry contact reed switch selectable NO or NC via float orientation
Vertical mounting configurations
Simple level switch for high temperature/pressure applications
Switches wire directly to a PLC/SCADA or controller
